2200 Mm B Flute Corrugated Machine Parts Single Facer Alloy Roller

2200 Mm B Flute Corrugated Machine Parts Single Facer Alloy Roller

  • 2200 Mm B Flute Corrugated Machine Parts Single Facer Alloy Roller
  • 2200 Mm B Flute Corrugated Machine Parts Single Facer Alloy Roller
  • 2200 Mm B Flute Corrugated Machine Parts Single Facer Alloy Roller
  • 2200 Mm B Flute Corrugated Machine Parts Single Facer Alloy Roller
  • 2200 Mm B Flute Corrugated Machine Parts Single Facer Alloy Roller
2200 Mm B Flute Corrugated Machine Parts Single Facer Alloy Roller
Product Details:
Place of Origin: Made In China Hebei
Brand Name: SOOME
Certification: CE
Model Number: SMWL
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Contact
Packaging Details: Wooden case or plastic film;LCL or 20' Container
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 30 Pcs/month
Contact Now
Detailed Product Description
Flute Type: A ,AC ,C .BC ,B ,BE ,E1 ,E2 ,F ,G Usage: Single Facer Machine Roller
Coating: 50CrMo,Tungsten Carbide Size: Customized According To Drawings
Hardness: HRC 55-60 Material: 45# Alloy
Tooth Height: 0.5-5.9mm Tooth Shape: UV, V, Alike V Type
High Light:

b flute corrugated machine parts

,

2200mm corrugated machine parts

,

alloy roller corrugated machine spare parts

2200M B Flute Corrugated Production Line Single Facer Roller

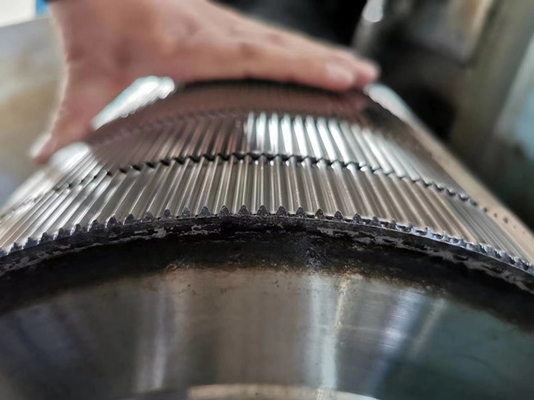

    Corrugated roller is an important and key part of single facer machine. Corrugated roller are divided into upper corrugated roller and lower corrugated roller. The upper and lower roller surfaces are female. The two rollers are paired for meshing assembly, and the meshing mechanism is different from the usual gear transmission. The lower corrugated roll is a driving roll, and the shaft end is equipped with a gear. The motor drives the lower corrugated roll to rotate by a reduction device. The upper corrugated roller is driven roller, and the tooth of the upper roller and the tooth of the lower roller meshing each other to drive. In order to make the corrugated base paper between the upper and lower corrugated rolls, a certain pressure must be applied on the upper corrugated rolls. So in addition to the upper corrugating roller around its own axis, and can move along the direction of the upper and lower corrugated roller axis line. This movement is through the cylinder to apply radial pressure on both ends of the corrugated roller, so that the corrugated roller meshing each other to produce bite pressure.



Corrugated roll classification



1 . Classification according to tooth type



The common tooth types are A, AC.C.BC,B,BE,E1,E2,F,G



2 . Classification according to tooth shape



The common shapes are U and V



3 . Classification according to surface hardness treatment



Common forms are surface electroplating corrugators and tungsten carbide corrugators.



Flute type



Characteristics of Flute
Flute Type Flute Height(mm) Quantity/300mm Length Note
A 4.6-4.9 34±2 Usually used for lining
C 3.6-3.9 38±2 Usually used for lining
BC 3.2-3.3 44±2
B 2.6-2.9 50±2 Usually used for printing
D 2.0-2.2 78±4

E

1.5-1.8 88±2 Usually used for color printing,
  1.1-1.5 92±2
F 0.8-1.0 128±2

2200 Mm B Flute Corrugated Machine Parts Single Facer Alloy Roller 0

2200 Mm B Flute Corrugated Machine Parts Single Facer Alloy Roller 12200 Mm B Flute Corrugated Machine Parts Single Facer Alloy Roller 2
