| Place of Origin: | Hebei China |
| Brand Name: | SOOME |
| Certification: | CE certification |
| Model Number: | SMYS-1226 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 25-40days after deposit |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100sets per month |
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Machine Max Speed: | 180 Pieces/min | Max Feeding Size (L×W): | 1200mm×2400mm |
| Min Feeding Size (L×W): | 350mm×650mm | Skip Feeding Size: | 1400*2400mm |
| Max Printing Size: | 1200*2200mm | Thickness Of Paperboard: | 1.8-12mm |
| Color Register: | 0.5-0.75 | Thickness Of Print Plate: | 7.2mm |
| High Light: | stack flexo printer slotter die cutter,flexo printer slotter die cutter rotary,2200mm printer slotter die cutter machine |
||
Function and characteristics:
Corrugating and die-cutting units belong to the middle and later stages of corrugated carton production line. Its main function is to print out the corrugated board produced in the previous process, color the cardboard, and then make the cardboard into a form of easy folding, stitching and bonding through two processes of grooving and die-cutting.
Technological Parameter:
|
|

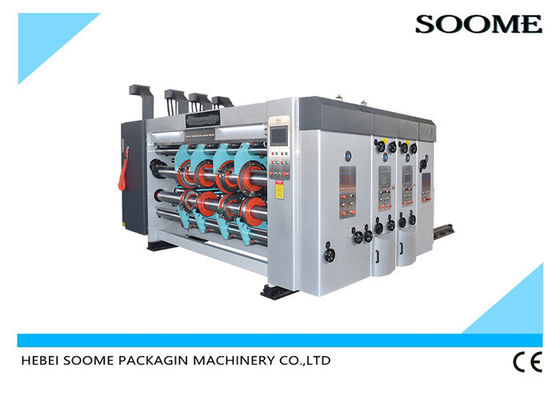

stack type second hand 2 color flexo printing rotary slotter die cutting machine
|
|
|
1
|
color group
|
to be configured according to user's needs
|
|
2
|
Printing paper
|
A,B,C,A/B,B/C and A/B/C type corrugated paperboard
(the maximum interval 11mm)
|
|
3
|
Width of machine inside
|
2200mm
|
|
4
|
Max.paper size
|
900×2000mm
|
|
5
|
Max.printing size
|
900×1800mm
|
|
6
|
Skip feeding paper
|
1100×2000mm
|
|
7
|
positive knife
Min.paper size negative knife |
300×640mm
300×720mm
|
|
8
|
Printing plate thickness
|
7.2mm
|
|
9
|
Design speed(piece/min)
|
200pcs/min
|
|
10
|
Economic speed(piece/min)
|
80-180pcs/min
|
|
11
|
Tinted precision
|
4( color) ±0.5mm
|
|
12
|
Slotting precision
|
±1.5mm
|
