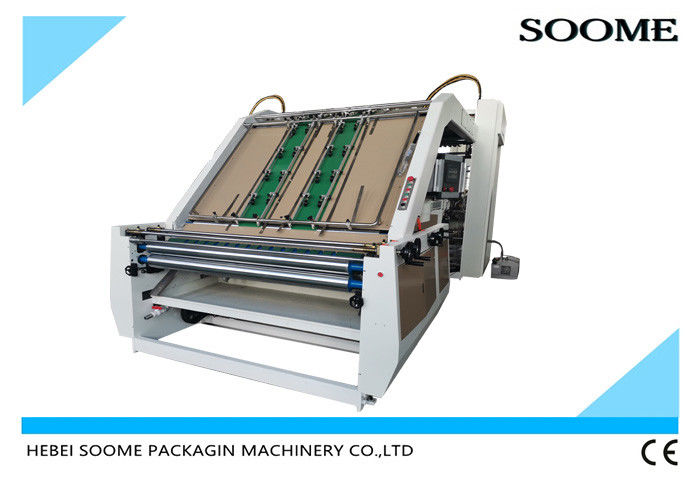

Corrugated Paper Box Automatic Flute Laminating Machine

Corrugated Paper Box Automatic Flute Laminating Machine

  • Corrugated Paper Box Automatic Flute Laminating Machine
Corrugated Paper Box Automatic Flute Laminating Machine
Product Details:
Place of Origin: Hebei China
Brand Name: SOOME
Certification: CE
Model Number: SM-1300A
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: wooden case with plastic film
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 per/mounth
Contact Now
Detailed Product Description
Voltage: 380V/400V/415V Or Others Driven Type: Electric
Economic Speed: 0-100sheets/min Dimension(L*W*H): 13.5m×2m×2.4m
Warranty: 1 Year Packaging Type: Cartons,Case,Film
Weight: About 4.8T Surface Paper Gram Weight: 150-600 G/m2
Power: 10KW
High Light:

automatic flute laminator

,

corrugated flute laminating machine

,

automatic flute laminating machine



SM-1300A Automatic Corrugated Paper Box Machinery Laminating Machine



Machine introduction:



1. Suitable for laminating of cardboard and corrugated cardboard in 150-600 g/m2 .

2. The vacuum suction-type feeding system can lead the paper accurately into the machine;cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient.

3. Using suction automatic feeding of bottom sheet, according to the main machine operating speed, continuous automatic tracking.

4. The machine operation is stable, surface paper with corrugated paper joint very accurate.

5. The corrugated paper never pull ahead, surface paper's location is easy adjust. Machine uses touch-screen/PLC/servo motor control system, double frequency control type , the circuit system is stable, and can automatically display the failure alarm.

6. Automatic gluing, and the glue can be used circulatory, avoid glue waste.

7. Measure roller line-speed design scientifically, avoid glue fly out when the speed is high.

8. Pressure rollers adopt unilateral adjustment, convenient and fast. Cleaning type : bottom roller is extruded by rubber roller to clean the bottom laminating pressure roller, ensure the cleaner on the reverse of the bottom paper . Make glue etc. foreign matter after washing direct subside in tank. At the same time , adopting the gear and chain to control the lifting of tank, can take out the tank easily and convenient to wash .

9. The pressure conveyor adopt floating movable structure , total length 5m , equipped with 28 paper pressing rollers , make the cardboard uniform bearing strength in pressing process.

10. Counter designs scientifically, easy recording the amount you have been worked.

11. Small pressure table (optional) . length 2.5m , big pressure table length 5m.



Technical parameter:



 Model SM-1300A-Ⅲ SM-1450A-Ⅲ SM-1550A-Ⅲ SM-1650A-Ⅲ



Max laminating size

1300mm×1250mm 1400mm×1250mm 1500mm×1250mm 1600mm×1250mm



Min laminating size

400mm×400mm 400mm×400mm 400mm×400mm 400mm×400mm
 Economic speed 0-100sheets/min 0-100sheets/min 0-100sheets/min 0-100sheets/min
Laminating precision ±1.5 ±1.5 ±1.5 ±1.5
 Power 10kw 12kw 12kw 12kw
 Size 13.5m×2m×2.4m 13.5m×2.05m×2.4m 13.5m×2.15m×2.4m 13.5m×2.25m×2.4m
 Weight About 4.8t About 5t About 5.2t About 5.4t

Bottom paper thickness

A/B/C/E/F flute,2/ 3/4/5/7/ layer , less than 12mm thickness

Surface paper gram weight

150-600 g/m2



Corrugated Paper Box Automatic Flute Laminating Machine 0













































































Corrugated Paper Box Automatic Flute Laminating Machine 1
