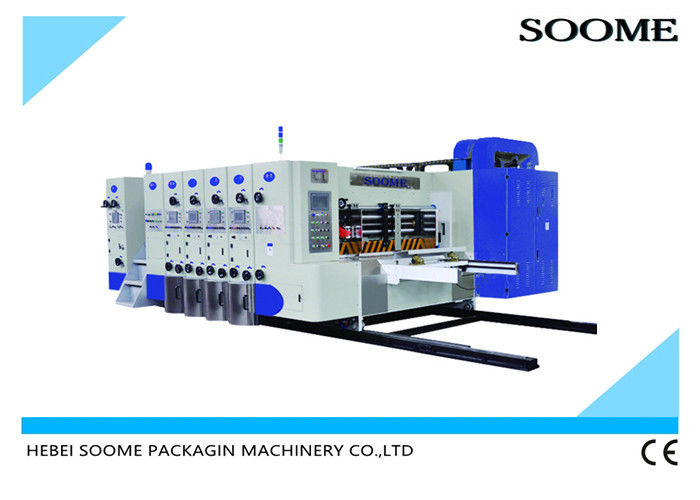

2600mm 4 Colors Paperboards Flexo Printing Slotting Machine

2600mm 4 Colors Paperboards Flexo Printing Slotting Machine

  • 2600mm 4 Colors Paperboards Flexo Printing Slotting Machine
  • 2600mm 4 Colors Paperboards Flexo Printing Slotting Machine
  • 2600mm 4 Colors Paperboards Flexo Printing Slotting Machine
2600mm 4 Colors Paperboards Flexo Printing Slotting Machine
Product Details:
Place of Origin: Made in China
Brand Name: SOOME
Certification: CE
Model Number: SMYS-1224
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wrapped with film or wooden case.
Delivery Time: 14 days after deposit.
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 15 sets per month.
Contact Now
Detailed Product Description
Application: Printing And Processing Corrugated Paperboard Product Name: Automatic Feeder Flexo Printer
Plate Type: Flexo Plate Color: Customer's Request
Condition: New Voltage: 220V/380V/440V
High Light:

paperboards flexo printing slotting machine

,

4 colors printer slotter machine

,

2600mm flexo printing slotting machine

Automatic Feeder 4 Colors Paperboards Flexo Printing Slotting Machine

1.Summarize

The words and images to be printed are first made into a printing plate, mounted on a printing machine, and then the ink is coated manually or by a printing machine on the plate where there are words and images, and then directly or indirectly transferred to the paper or other substrate, so as to reproduce the same printing plate.



2.Features and Characteristics

1. Automatic computerized machine ,easy to operation.
2. Color touch screen, saves 999 groups orders.Automatically order's input, inquiry, delete and zero-clearing.The automatic / manual adjustment of phase, management of the parameters, up and down the plate, auto/semi-auto inking, automatic display of production and speed, and setting of the quantities.
3. All the drive rollers adopted high quality steel materials, hard chromium plating and the surface treated by lapping finish. The drive gears adopt high quality alloy steel, after heat treatment and lapping finish.
4. Interval of all the rollers is adjusted by high precise worm box. With three disk handle seat, convenient and swift.
5. Motorized electric numerical adjust the axial and vertical movement of the knife seat and height of the carton.
6. Speed difference compensation system is equipped with Die cutting unit, Axially conjunct moving of the cam type soft roller is 40mm, uniform wear and tear, raise the occupation of the gum cover, save the cost.


3.Technical Parameters

Parameter Unit

SMGS

420-2600

SMGS

420-3000

SMGS

480-2800

SMGS

480-3200

Inner Width mm 2600 3000 2800 3200
Max.Paper Size mm 1300*2300 1300*2700 1500*2600 1500*3000
Max.Printing Size mm 1250*2200 1250*2600 1500*2400 1500*2800
Interval Feeding Size mm 1400*2300 1400*2700 1650*2600 1650*3000
Max.Speed pcs/min 150 150
Economic Speed pcs/min 0-120 0-100
Topping Precision mm +-0.5 +-0.5
Standard Plate Thickness mm 7.2 7.2
Cardboard Thickness mm 2-11 2-11
Min.Slotting Interval mm 165*165*165*165 165*165*165*165
Max.Slotting Depth mm 320 450
