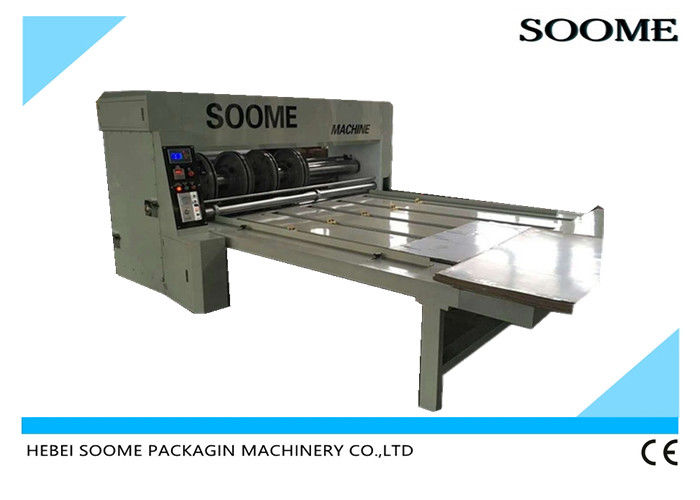

Chain Feeding Type Rotary Cutting Slotting Machine With Corrugated Paperboard

Chain Feeding Type Rotary Cutting Slotting Machine With Corrugated Paperboard

  • Chain Feeding Type  Rotary Cutting Slotting Machine With Corrugated Paperboard
  • Chain Feeding Type  Rotary Cutting Slotting Machine With Corrugated Paperboard
  • Chain Feeding Type  Rotary Cutting Slotting Machine With Corrugated Paperboard
Chain Feeding Type  Rotary Cutting Slotting Machine With Corrugated Paperboard
Product Details:
Place of Origin: Made in China
Brand Name: SOOME
Certification: CE
Model Number: SMCN-530
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden case or film
Delivery Time: 14 days after deposit
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Condition: New Brand NameBrand NameBrand NameBrand NameBrand Name: SOOME
Color: Customize Material: Steel
Application: Cardboard Cutting Machine Type: Flexographic Printer
High Light:

flexo printer slotter machine

,

printing slotting die cutting machine

Chain Feeding Type Rotary Cutting Slotting Machine With Corrugated Paperboard

1. Summarize



Semi-auto chain feeding type slotting machine adopts electric counter, can control the paper quantity exactly, adjusting 4 slotting knives by manual together to change the slotting depth together, finish the carton height adjustment in one time together. Manual transverse moves of 4 slotting knives separately.



2. Features and Characteristics



1)Chain paper feeding type, stepless speed control.

2)In front of chain feeder installed the elastic pressing strips to help the curved paper feed in.

3)Light-operated counter, can set the order qty.

4)The working table connected with machine, the clutch helps match with printing plate easily.

5)Slotting knife:width 7mm,alloy material,pass heat treatment,grinding,tooth form slotting cutter.

6)The slotting phase adopt planetary structure, digital adjustment in 360 ( can adjust when run and stop).

7)Manual transverse,make the knife dish line pressing move at the same time,fast and convenient.



3.Technical Parameters



No.

Item

1600x2400
1

Economic speed

40-60pcs/min

2

Max. Feeding size

1600mm×2400mm
3

Max. Printing size

1600mm×2400mm
4

Suitable paper thickness

1-10mm
5

Inner wallboard width

2400mm
6

Knives outer diameter

Ø530mm

Chain Feeding Type  Rotary Cutting Slotting Machine With Corrugated Paperboard 0
