| Place of Origin: | Hebei China |
| Brand Name: | SOOME |
| Certification: | CE Certification |
| Model Number: | SMBD-DNC-2750 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Touch Screen Thin Blade Corrugated Cardboard NC Slitter Scorer Machine packing by wooden case with plastic film |
| Delivery Time: | 24 after depoist |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100per/mounth |
| Type: | Other | Voltage: | 220V/380V/440 |
|---|---|---|---|
| Usage: | Slittng And Creasing Cartonbox | Design Speed: | 180m/min |
| Dimension(l*w*h): | 1570*3450*1500mm | Power: | 10/12kw |
| Application: | Machinery & Hardware,Food | Condition: | New |
| Warranty: | 1 Year | Driven Type: | Electric And Pneumatic |
| High Light: | cardboard manufacturing machine,corrugated box manufacturing machine |
||
Brief introduction:

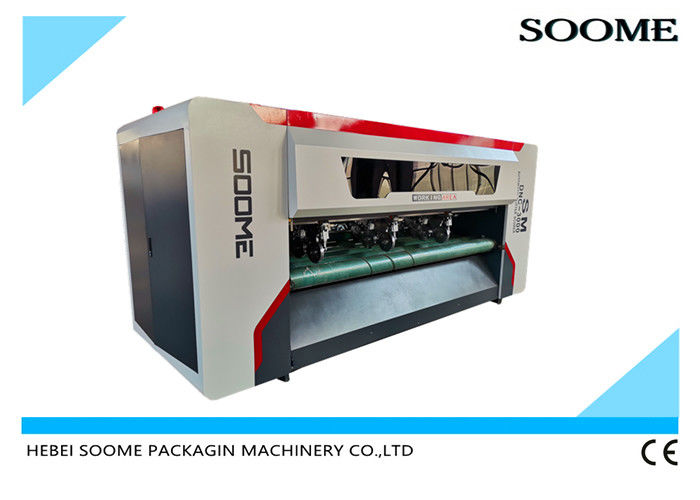

Thin blade slitter machine can be used separately or used in corrugated paper production line , its function is slitting corrugated paper to narrow pieces and creasing horizontal line on corrguated paper . important machine for corrugated carton box packaging making.
Features:
1. Can set the qty. of paperboard, automatic stop the feeding after finishing.
2. Auto suction feeding, assured the safety of workers and decreased the working load.
3. Suitable to a large scale paperboard machining.
4. Alternative types of manual/electric/automatic adjusted blades and so on.
Slitting Department :
Series thin knife slitting creasing machine adopts thin knife slitting, after grinding wheel after sharp blade makes cutting the cardboard edge finishing, flattening phenomenon is minimal, improve quality and appearance of cardboard overall quality especially in favor of cardboard printing after feeding, thereby reducing waste, improved quality of the carton.
Sharpener with manual and automatic switching of two ways, according to the time or paperboard running speed selection sharpener and stop grinding time. To keep the blade sharp and make cardboard cut smooth and tidy;
Adjust the blade from electric, pneumatic automatic locking fixation. Manually adjust the pressure line width. Using separate single-handedly carrying knives structure, according to the number of cardboard cut switch; program the machine wear and tear caused by different cutter size can be adjusted.
Human machine interface —PLC control,cutter paper thin blade change order use stand alone stepper motor control,auto change order speed 1-20S,error precision±0.5 mm.
Operation humanized.,no technical content,worker use operation use easy.
Slitting part:Adopt high quality tungsten steel thin blade,sharp and long work life,slice more tidy,non-pressing and non-burr.
The two sides of thin blade are cut separately by rubber wheel press board,surmount not scorer,separate plate,off tracking ,to prevent the bad effect of straight line.
This machine can memory 999 group order,don’t need stop machine can change order and manual change order.
Technical index:
| Model | SMBD-CNC-2750 | SMBD-CNC-3250 | ||
| No.s of slitting scoring | 4/6 5/8 7/12 | |||
| Max.production speed | 180m/min | 180m/min | 180m/min | 180m/min |
| Max.feeding width |
The Max.slitting between the two blades:2250mm |
The Max.slitting between the two blades:2750mm |
||
| Max.slitting width | 2600mm | 3100mm | ||
| Min.slitting width | 200mm | 200mm | ||
| Min.feeding length | 200mm | 200mm | ||
| Min.scoring distance | 40*135mm | 40*135mm | ||
| Gap adjustment | Manual | Manual | ||
| Main motor power | 10kw | 12kw | ||
| Dimensions L*W*H | 1570*3950*1500mm | 1570*3950*1500mm | ||
| Weigh | 2780kg | 2980kg | ||
