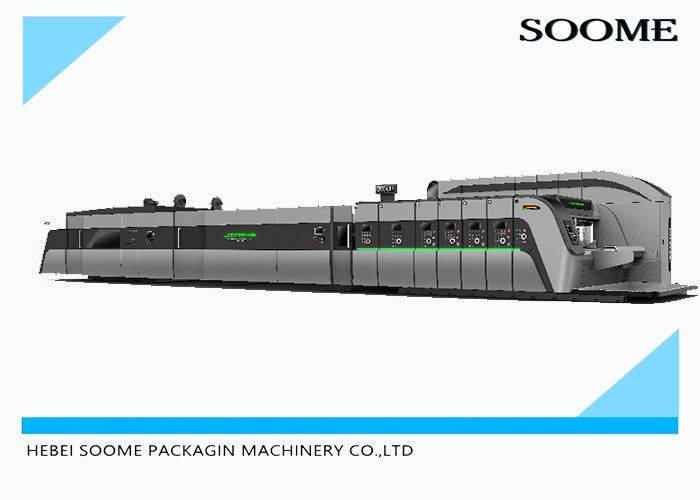

Remove System Automatic Corrugation Machine Vacuum Sheet Four Color Printing



This machine aimed at solving the existing carton printing machinery poor automation, low stability, poor reliability, unsightly appearance, short life and other problems. The product adopts high speed direct printing method, which integrates printing, drying, glazing, slotting, die-cutting, gluing box, folding and carton forming.



Main technical parameters:



JK1636 FULLY AUTOMATIC LEAD FEEDER FLEXO FOUR COLOR PRINTING SLOTTING DIE CUTTING MACHINE DRYER
Max Machine Speed (pcs/min) 200
Economic Working Speed (pcs/min) 150-180
Max Feeding Size (mm) 1600×3600
Max Printing Size (mm) 1600×3400
Skip-feeding Size (mm) 1800×3600
Min Feeding Height (mm) 350(low speed,full printing)
Max Slotting Depth (mm) 380
Standard Plate Thickness (mm) 7.2
Suitable Cardboard Thickness (mm) 2 - 11
Main Motor Power (kw) 30
Total Power (kw) 100
Overall Dimensions (mm) L*W*H 15000×4500×1800







Remove System Automatic Corrugation Machine Vacuum Sheet Four Color Printing 0



 Feeder Unit:

►Continuous or skip feeding is available with counter;

►Copy sun automation lead edge feeder with strong vacuum transfer for

precise and stable feeding;

►Variable frequency drive control for vacuum blower fan for increased

or decreased vacuum suction to match different size cardboard.

►Feeding roll is made of two-layer rubber,inner layer is soft and outer

layer is hard,this makes inner layer more flexible and surface more

wear-resistant,and reduce the flute damage of the cardboard;

►Dust remove system with brush and segmented vacuum sheets cleaner;

Self-locked system adopts for adjusting feeding rolls gap,motorized

and PLC control of feeder side guides;

►Motorized backstop forward /backward and up/down position for easy

and quick adjustment;

►Main motor is protected from starting up when units are not fully

closed and locked.

 Printer Unit:

►Mounting roller with left and right both of side locking device,let the

mounting position more accurately.

►Pneumatic clutch is adopted on the anilox roll to:

(1)Make the roll run at the same speed as the main motor when the unit

is printing;

(2)Make the roll stop when the unit is not printing;

(3)Reduce the possibility of damage to the rubber roll and the anilox

roll for inproper operation;

(4)Allow units which are not in use to be washed up while running.

►Printing register is digitally controlled by motor and PLC

►Transverse register is also digital controlled by motor and PLC ±10mm

►Quick set and self locking pull collars.

►A fixed device of printing register and brake of electromagnetic clutch

is used when the unit is opened.upon closing the unit,the positions are

precisely restored so the unit is ready for production without

adjustment.

►Cleaning function can be automatically switched to ensure the ink

recycling thoroughly

►Automatic resetting after cleaning the printer



Drying Unit:



►using infrared irradiating combined drying system for fast color

fixing,guarantee the drying of ink between colors,avoiding

smudging.can directly follow the light oil,slotting,die cutting process.

►vacuum suctioned drying unit;independent servo drive(optional)

►entire process roller-type vacuum suction transport system.

►heating range can be chosen according to the cardboard size,the

bellows damper can adjust by automatic according to the cardboard

size:small,medium,large

►lift controlled transport table

►customers can choose three drying system according to their

configuration:hot air or infrared or ultraviolet light.

►the drying system by the import PLC program automatic

controlling,Man-machine dialog control and display

►Automatic temperature control, fault alarm protection, automatic

detection alarm, fault status display

►Drying system with the host control starting and closing double

protection, completely solve the cardboard directly irradiation time

heat and burning this question when the machine stop.

Slotter Unit:

►Single shaft five blades slotting ,an internal gear adjusts the height

of the carton box and prevents the lubricating oil from spilling or

leaking onto the cardboard

►The first pre-creasing,the cardboard not be damaged after prepressing.

►Upper creasing roll covered by anvil ring,so cardboard is not damaged

easily.

►Slotting bosses move along liner lead rails and are driven by lead

screws for flexible and precise movement.

►Upper boss and lower boss are coupled to keep the two knives aligned

while moving,which is helpful to prolong service life.

►Slotting register and height of carton box are digital controlled by

motor and PLC.

►Transversal movement of the pre-creasing rolls,and slotting bosses’ are

digital controlled by motor and PLC

►Motorized controls of the slotting bosses caliber.

►A protective device prevents the slotting knife from crashing when the

height of the carton box is adjusted.

►Flexible angle cutting knife can cut 3 or 5 or 7 ply cardboard with no

adjustment,easy to operate.

Linkage Unit:

 UP Glue Unit

◆Up Gluing part adjust electric control , Human-computer control .

◆Automatic glue spraying system

◆Equipped with the servo control of the glue spraying and the host synchronous operation.



 Folding Unit



◆Folding beam electric displacement, man-machine interface control.

◆ The rear drive shaft is located at the top of the folding beam.

◆ With adjustable folding stick.

◆ Equipped with elastic pressure wheel of belt conveyor.

◆ Equipped with a synchronous conveyor belt.

◆Equipped with carton guide side roller.

◆The upper belt tension is set by the cylinder, and the belt elongation automatically compensates.



 Whole paper accumulation department.



◆Have the wind pressure board down, the front of the cardboard paper.

◆ Equipped with electric adjustment accumulation department.

◆ Equipped with front and rear baffle electric displacement function.



Counting the discharge part.



◆ The number of carton boxes can be automatically discharged from 15~30.◆With board lifting roller device.

It has the function of high and low power adjustment of press frame.



◆Stable

The lead feeder, servo phase, the vacuum adsorption, many rows dislocation arrangement design, favors the cardboard stable transmission. Reinforced frame positioning device, gear direct rigid connection in the wallboard, imported gear from Taiwan and bearing from Japan with high speed and long-term stability,with integral anilox roller lift version to keep promotion assure printing, the whole machine adopts the French schneider electric, host, fan, PLC, touch screen use Germany Siemens.



◆Precise

Rubber roller surface with double glue technology, low pressure transmission from the impact of the pneumatic pressure, can control the whole vacuum adsorption, more with a word dislocation encryption round ceramic array, cardboard more adsorption, without beating, the overall precision of the anilox roller transmission device, full speed to reduce anilox roller beating,with servo phase adjustment increase anilox roller printing quality, down adjustment pressure structure of the die cutting roller keep paperboard line transmission precision guarantee.
