| Place of Origin: | China Hebei Dongguang |
| Brand Name: | SOOME |
| Certification: | CE |
| Model Number: | SMTM-ZDQG |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden or plastic * 40”container |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 set/month |
| Voltage: | Customer's Demand | Drive Type: | Electric |
|---|---|---|---|
| Dimension: | Machine Model | Max.cover Face Length Size: | 1600mm |
| Warranty: | 1 Year | After-sales Service Provided: | Engineer Available To Service Machinery Overseas |
| High Light: | paper mounting machine,automatic flute laminator |
||

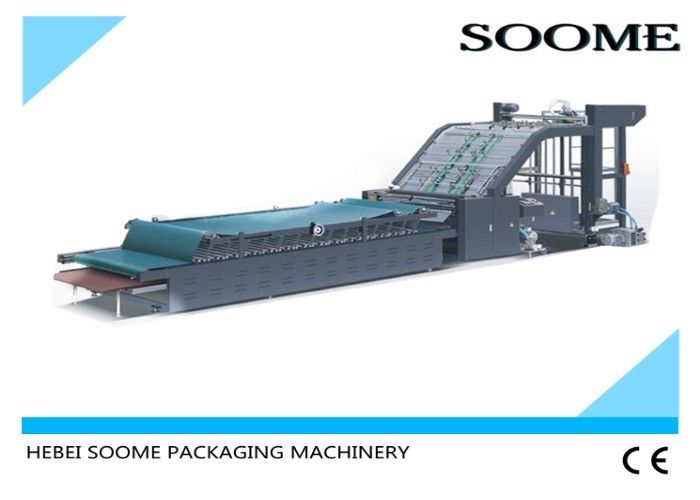

High Efficiency Cardboard Laminating Machine Easy Operation 1 Year Warranty
Performance of the machine:
1. Face paper USES suction feeder,more accurate,more stable will face paper to the location,feeding easier,improve work efficiency.
2. Bottom paper adopts servo system,the machine to speed corrugated paper more stable,improve the speed.
3. Go paper surface of paper in the process of design is an important type of paper,running more stable,higher speed,can reach 6000 copies per hour.
4. Adopt the new perspective elasticity front guide positioning.Positioning accuracy is high.The bottom paper will never be advanced.
5. The whole machine adopt the PLC control system,Circuit system running smoothly,And automatically display fault alarm.
6. Automatic glue supplementary system,Automatically added the loss glue amount.And match the recycling of glue,avoid the waste of glue consumption.
7. Metering roller linear velocity scientific design,ensure uniform glue quantity,at the same time ,to avoid rejection glue when high-speed running.
8. Pressure roller unilateral regulation,convenient and quickly.
9. Shaking control the wash water roller lift and the down,convenient cleaning the upper rubber roller and the down rubber roller.Cleaning it convenient and quickly.
10. Adopt the humanized design counter,convenient record every day’s workload.
Specifications:
| Model | SMTM-ZDQG1300 | SMTM-ZDQG1400 | SMTM-ZDQG1500 | SMTM-ZDQG1600 |
| Max.size of cover face | 1100*1300mm | 1250*1400mm | 1250*1500mm | 1250*1600mm |
| Min.size of cover face | 360*360mm | 360*360mm | 360*360mm | 360*360mm |
| Economic speed | 0-100Pcs/min | 0-100Pcs/min | 0-100Pcs/min | 0-100Pcs/min |
| Lamination precision | ±1 | ±1 | ±1 | ±1 |
| Power | 11.5kw | 11.5kw | 11.5kw | 11.5kw |
| Overall dimension | 11*1.95*1.5m | 11*2.05*1.5m | 11*2.15*1.5m | 11*2.25*1.5m |
| Weight | 3.8t | 3.9t | 4.0t | 4.2t |
FAQ:
1. Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kind of carton equipment.(with export license)
2. Q: Where is your factory located? How can I visit here?
A: Our factory is located in Dongguang Country Cangzhou City Hebei Province China. We can pick you up if you need, welcome to visit our factory.
3. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our sole purpose, providing the products with excellent quality, professional technology. always attach great importance to quality controlling from the very beginning to the very end .
a.All raw material we used are environmental-friendly
b.skillful workers care every details in handling the producing and packing process
c.Quality control department specially responsible for quality in each process.
5. Q: How is the evaluation of the products?
A: Products are distributed in Russia, the Middle East, Africa, Southeast Asia,
EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and aboard.
6. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
