| Place of Origin: | Made In China |
| Brand Name: | SOOME |
| Certification: | CE |
| Model Number: | SMTM-BZD-1500 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wapped With Film |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets/Month |
| Condition: | New | Material: | Stainless Steel |
|---|---|---|---|
| Voltage: | 220V/380V | Application: | Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles |
| Power: | 6KW | Driven Type: | Electric |
| High Light: | paper mounting machine,auto feed laminator |
||

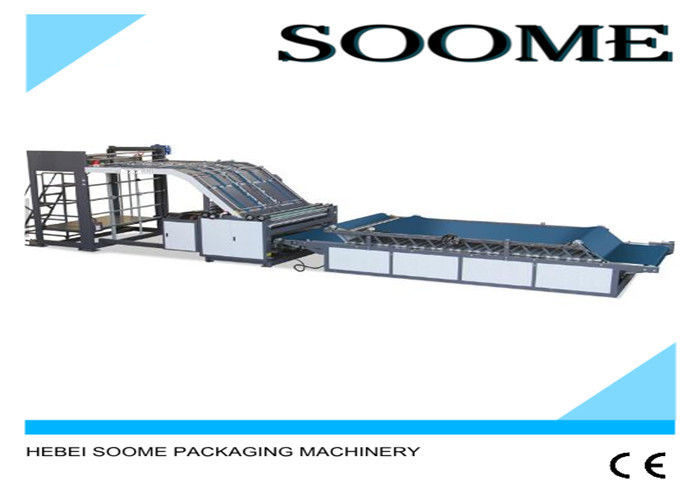

2 Layers Corrugated Flute Laminating Machine , Dry Lamination Machine Approved
Main Feature
1. Independent research and development, adopt advance clutch drive.
2. Adopt PLC control system, working is more precision and stable, improved the speed, circuit faults can automatically alarm.
3. This machine adopts taiwan servo motor, instead of the break, clutch and electric eye, realized PLC & servo single control independently
4. Corrugated cardboard auto feeding, as fast as the surface paper’s working.
5. The machine operation is stable, surface paper with corrugated paper joint very accurate. The corrugated paper never pull ahead, surface paper’s location is easy adjust.
6. Automatic gluing, and the glue can be used circulatory, avoid glue waste.
7. Roller design scientifically, avoid glue fly out when the speed is high.
8. Pressure rollers adopt unilateral adjustment, convenient and fast.
9. Rocker controls wash roller’s fluctuation, easy cleaning.
10. Counter designs scientifically, easy recording the amount you have been worked.
Information For Laminating Machine
1.Top board/Paper thickness- minimum and maximum:Min.:175g, Max.:350g,Top paper must be flat.
2. Ply thickness and quality can feed in this machine:Min.: 2ply E flute,Max.: 4ply A+A flute less than 10mm corrugated sheet must be flat.
3. Servo Specification:1.5KW SERVO MOTOR, Brand: Shilin or Delta from TAIWAN.
4. Electrical parts/ PLC/Motor brand:Adopt 3 Inverter, 1 PLC, brand: Shilin or DELTA from TAIWAN.
5. What component will come along with machine and what other equipment has to arrange by customer:
Machine include: Host machine 1 set, pressure part 1 set, Air compressor 1set, wind pump 1set, glue pump 1 set, table 1 set.Customer arrange: Glue, top paper, corrugated sheet, wire
6. Required Power supply inputs:14kw.
7. What support you will give in first Installation:Operation book and circuit diagram.
8. What spares I have to keep in stock for after sales service and what is dealer and customer price of that list:I will give you some spring as free spare parts. The others are not easy to broken.
9. Specification of glue applying system and glue circulatory system:Automatic gluing, and automatic circulatory.
10. Scope of standard warranty:1 year warranty for the machine. But not include electric parts.
| Model | SMTM-BZD-1500 |
| Max size of cover face | 1500mmX1250mm |
| Mix size of cover face | 360mmX360mm |
| Economic speed | 0-80 piece/min |
| Precision | +-1 |
| Power | 6kw |
| Size | 9m x 2.5m x 2m |
Main Electronics
| No. | Name | Brand | Add |
| 1 | SERVO MOTOR | DELTA | TAIWAN |
| 2 | AC DRIVE | DELTA | TAIWAN |
| 3 | INVERTER | DELTA | TAIWAN |
| 4 | MAIN MOTOR | MENGNIU |
CHINA
|
| 5 | TOUCH SCREEN | MCGS |
CHINA
|
| 6 | PLC |
DELTA
|
TAIWAN |
| 7 | TRANSFORMER | RENMIN | SHANGHAI |
| 8 | OTHER ELECTRIC SYSTERM |
CHINT
|
CHINA |
| 9 | BEARING | Rhonda | CHINA |
| 11 | BELT |
MEGAPOWER
|
ITALY |
| 12 | COMPRESSOR | JINZENG | CHINA |
